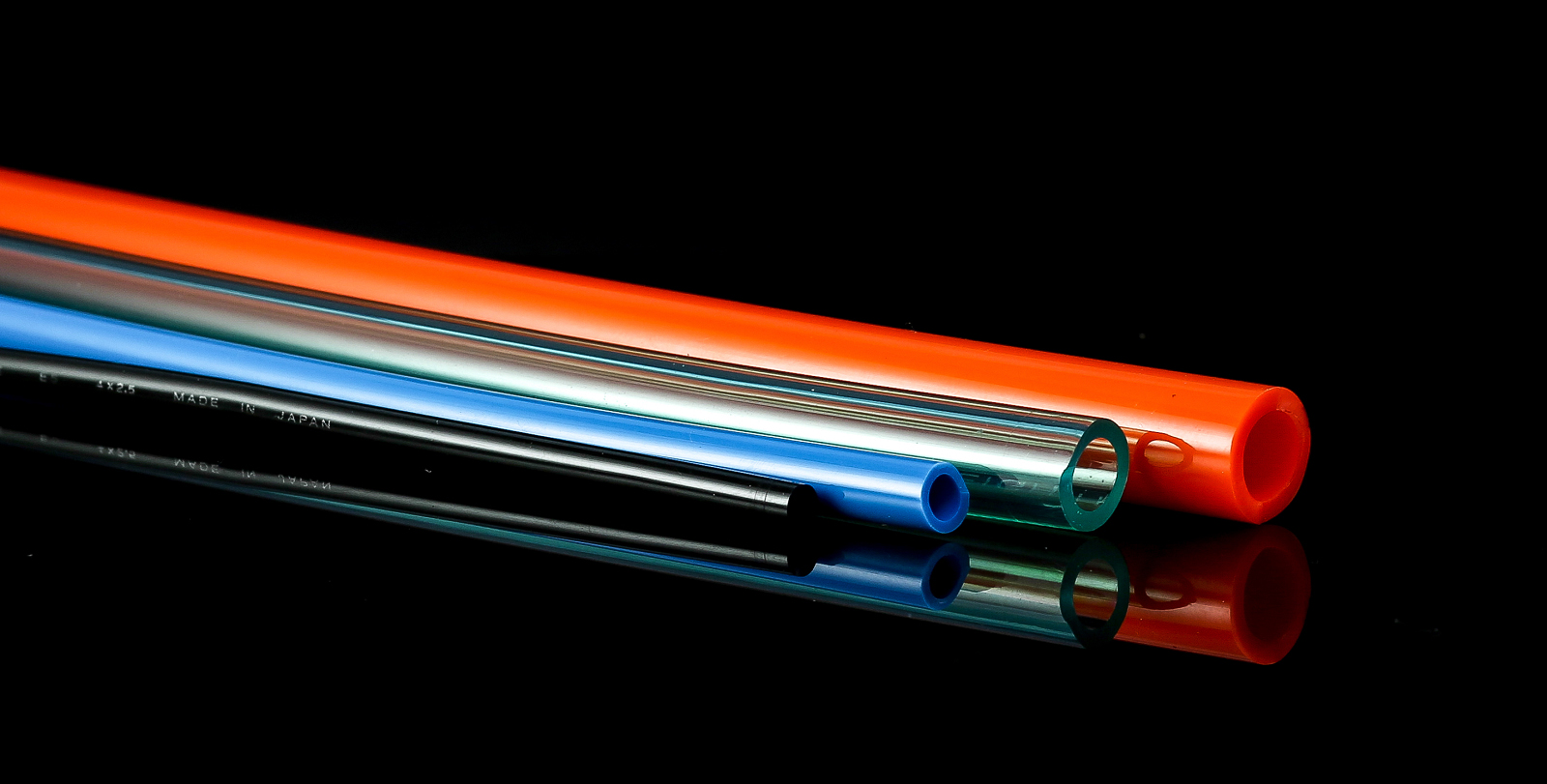

PU (Polyurethane) Tube with resistance of water / oil
PU tube is Polyether type which comes with strong resistance to water, oil, and cold temperature.
It’s been commonly used on the dental chairs, and its life-cycle is averagely above 6 years which saves unnecessary wastes of consumables and labor cost on replacements.
Remark: According to the feedback from industrial users, HAKKO PU tube is much more durable than other brands, even working over 10 years without replacement.
Fluids
Water, oil, air
Application
- Water in Dental equipment
- Air Tool at Automobile Body Shop
- Air Hose for Air Inflator and Air Compressor
- Air Hose for Building Painting, Air Duster, and Woodworking
Characteristics
- Water/oil Resistance：Since it’s made of Polyether type material, it shows strong ability on water/oil resistance which has long working endurance, and keeps flexibility without hardening
- Duration：Polyurethane resin is strong in abrasion resistance. Thus, it is suitable for air tools such as air drivers.
- Flexibility：flexible than Nylon tubes for better working efficiency
- Cold resistance：Polyurethane resin is great at cold resistance. Thus, even though the temperature reaches around -20°C, it does not get harden, keeping the work efficiency.
- Light weight：Weight is lighter than PVC for better operation and protects your wrists and arms from injury
Materials / Structure
Specification
| Model Number | O.D. x I.D. (mm) | Working Pressure Mpa (20℃) | Min. Bend Radius (mm) | Temp. Range (℃) | Standard Length (M) | Color |
|---|---|---|---|---|---|---|
| E5PU-0425 | 4 x 2.5 | -0.1~0.6 | 10 | -20~80 | 200 | Black, Blue, Orange, Sky blue |
| E5PU-0604 | 6 x 4 | -0.1~0.6 | 15 | -20~80 | 200 | Black, Blue, Orange, Sky blue |
| E5PU-0805 | 8 x 5 | -0.1~0.6 | 23 | -20~80 | 100 | Black, Orange, Sky blue |
| E5PU-1065 | 10 x 6.5 | -0.1~0.6 | 30 | -20~80 | 100 | Black, Orange, Sky blue |
| E5PU-1208 | 12 x 8 | -0.1~0.6 | 35 | -20~80 | 100 | Black, Orange, Sky blue |
