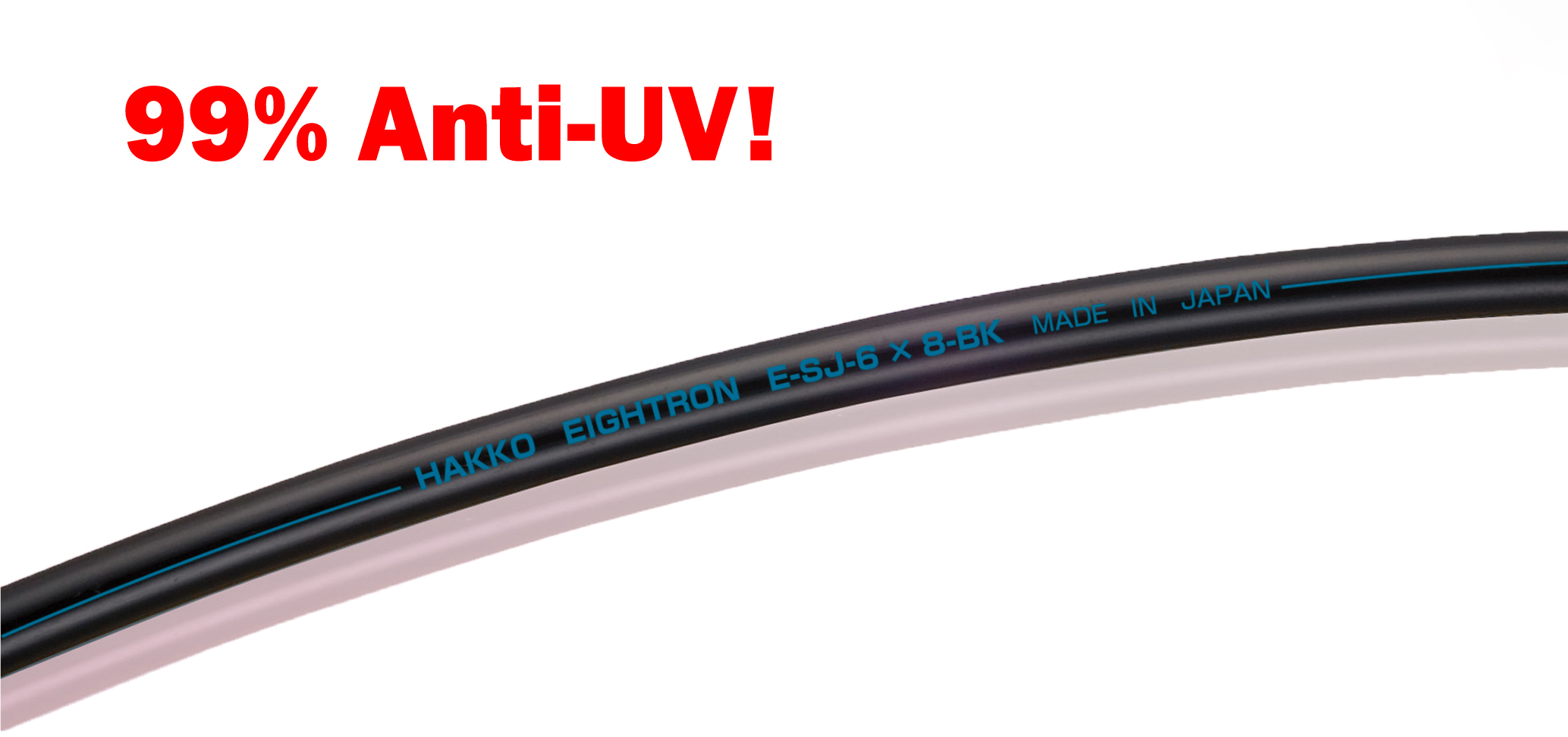

Flexible Fluorine (ETFE) Resin Tubing Black

It efficiently resists ultraviolet rays up to 99%, and commonly use on painting machines for UV curable resin, UV-based paints. Due to its multilayer design, it shows high ability on chemical resistance, and superior flexibility for better work efficiency.


Chemicals, UV paint, UV ink


  • Industrial UV Ink-Jet Printers
  • UV-based Paints and Solvents of the Painting Equipment
  • UV-curable Inks
  • Chemicals used in Laboratory Equipment
  • Chemicals used in Semiconductor-Related Devices and Flat-Panel Display (FPD) Manufacturing Devices
  • Pipe for Printing Head
  • Filling Line of UV Paints and UV-based Adhesives


  • Anti-UV:Shield the ultraviolet (Wavelength: from 240nm to 800nm) over 99%.
  • Chemical Resistance:Since the inner layer is made of ETFE fluorine resin, it resists most of the chemical substances.
  • Flexibility:Due to the laminated structure, it is superior in flexibility and improves work efficiency.
  • Non-Adhesiveness:Since fluorine resin is superior in water-proof and non-adhesiveness, the fluids could be washed out easily.
  • Plasticizer-Free:Does not contain plasticizers, and it is an oil-free tubing.
  • Non-PVC:Made of a non-PVC material.
  • High Purity:Does not contain any additives such as plasticizer, so it is suitable for transferring high purity chemical fluids.
  • Easy to Cut:Cut mark is showing on the hose every meter, so it is easy to cut the length you prefer.

Materials / Structure


Model NumberO.D. x I.D.
Working Pressure Mpa
Working Pressure Mpa
Min. Bend Radius
Temp. Range
Standard Length
E5SJ-0503-B5 x 30~0.60~0.220-20~80100Black
E5SJ-0604-B6 x 40~0.60~0.225-20~80100Black
E5SJ-0705-B7 x 50~0.50~0.240-20~80100Black
E5SJ-0806-B8 x 60~0.40~0.250-20~80100Black
E5SJ-1208-B12 x 80~0.60~0.250-20~80100Black


As you can see at 1:12, compared with the conventional single-layer fluorine tubing, our tubing is superior in flexibility. This could improve your work efficiency.
